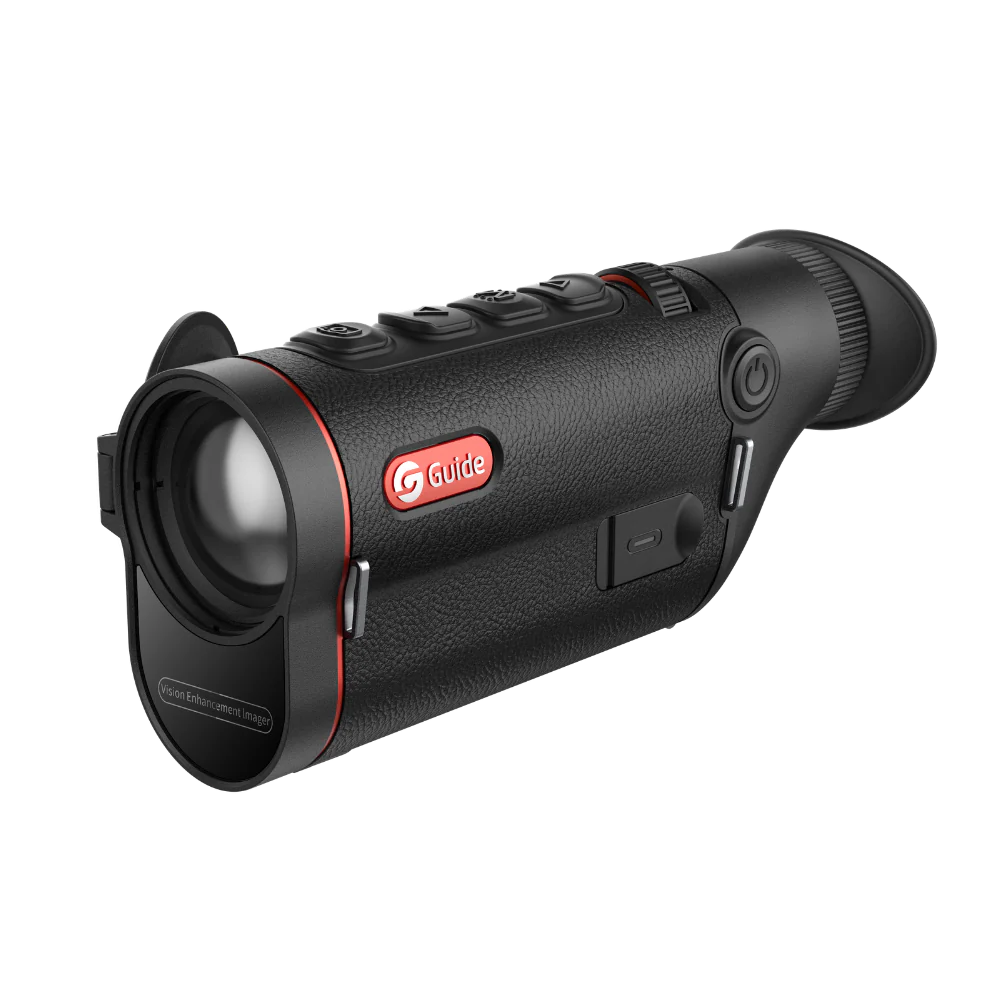

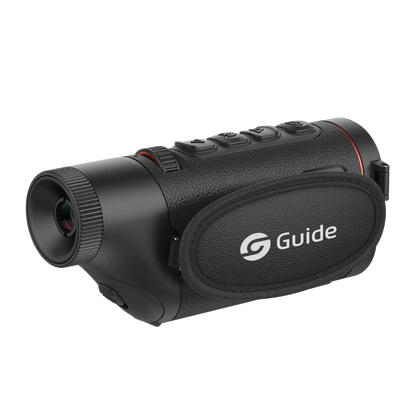

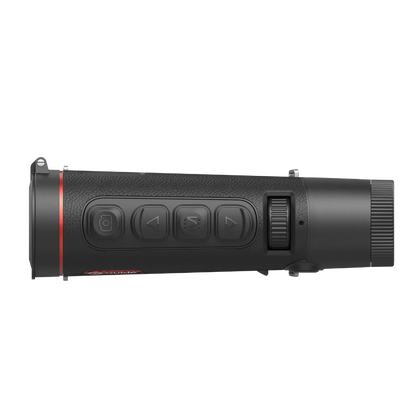

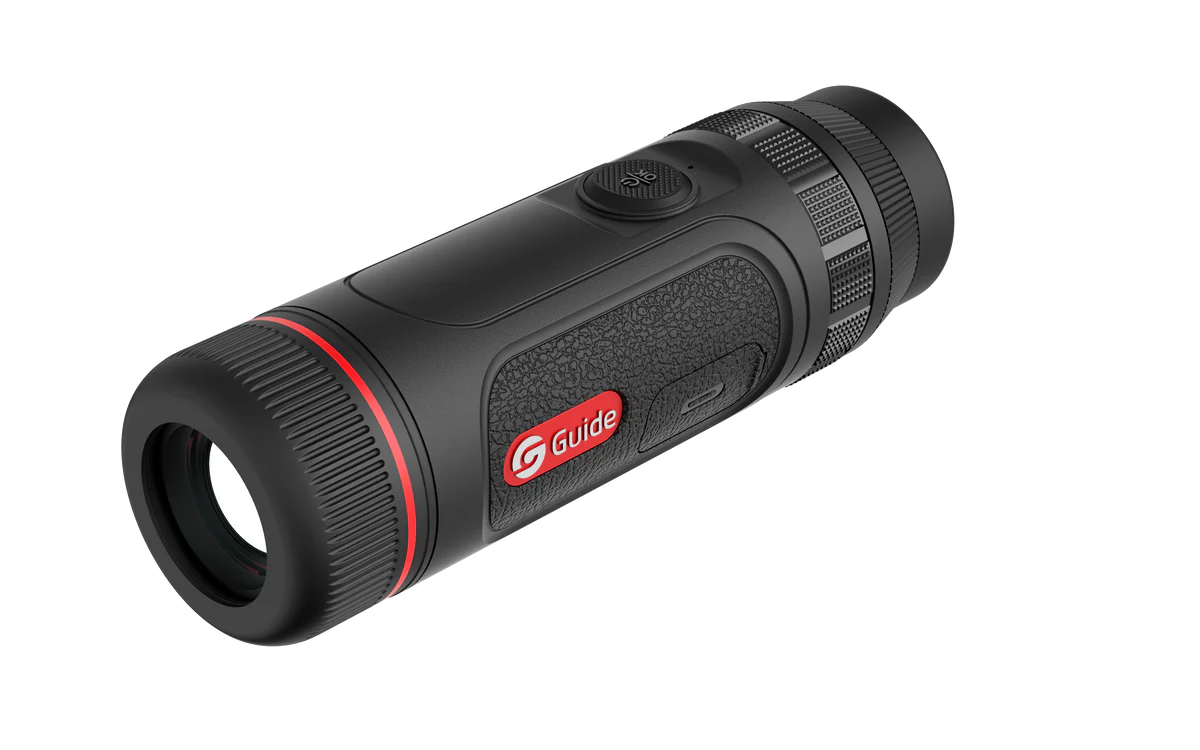

Name: TD633 Thermal Monocular 2X 640x512 35mm
Brand: Thermal Game Management
Price: 1439.0 USD
Availability: InStock

640×512@12μm, 20mK Detector
One-handed Easy fingertip focus
1090yd Laser Rangefinder
10 Hours Battery
10-Year Warranty

The TD Gen 3 Series Handheld Thermal Imaging Monocular is our latest compact night vision device. Equiped with a 640 x512 infrared detector and a 35mm lens, it delivers a powerful detection range of up to 1950 yard and a laser rangefinder at 1090 yard.

Perfect for all users, its ambidextrous design is ergonomic and enable one-handed operation. Up to 10 hours of runtime with a single 18650 battery, you can trust its performance for a night long hunt.

Sensor
Type	Uncooled VOx Infrared Detector, 8 to 14μm
Resolution	640×512@12μm
NETD	20mK
Frame rate	50Hz

Lens
Objective lens	35mm F1.0
Field of view	12.5°×10°
FOV m@100m	22×17
Magnification	2.0x~16x
Detection range	1800m/1950yd
Focus	Manual
Digital Zoom	8x

Display
Display type	0.36'' AMOLED 1280×960
Color palettes	White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece	Eye relief: 20mm; Diopter: -6 to +6; Zoom: 13.8x

Hardware
Laser rangefinder	1000m/1090yd
WIFI	2.4G, 5G
Interface	USB-C
Others	Microphone, Bluetooth

System
Recording function	Photo/Video (Audio recording included)
Memory capacity	32GB

Power
Battery type	Single, Replaceable 18650 Battery
Operating time	10 hours

Environmental
Operating temp.	-20°C to 50°C / -4°F to +122°F
Encapsulation	IP67

Physical
Weight (g/oz)	376/13.26
Size (mm/in)	159×54×74/6.26×2.13×2.91
Standard	Device, Dust-Free Cloth, Hand Strap, Eye Mask, Battery Charger, 18650 Battery ×1, 5V 2A Adapter (US, UK, Australia, and Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card
Optional	Bluetooth Remote Control, 18650 Battery
