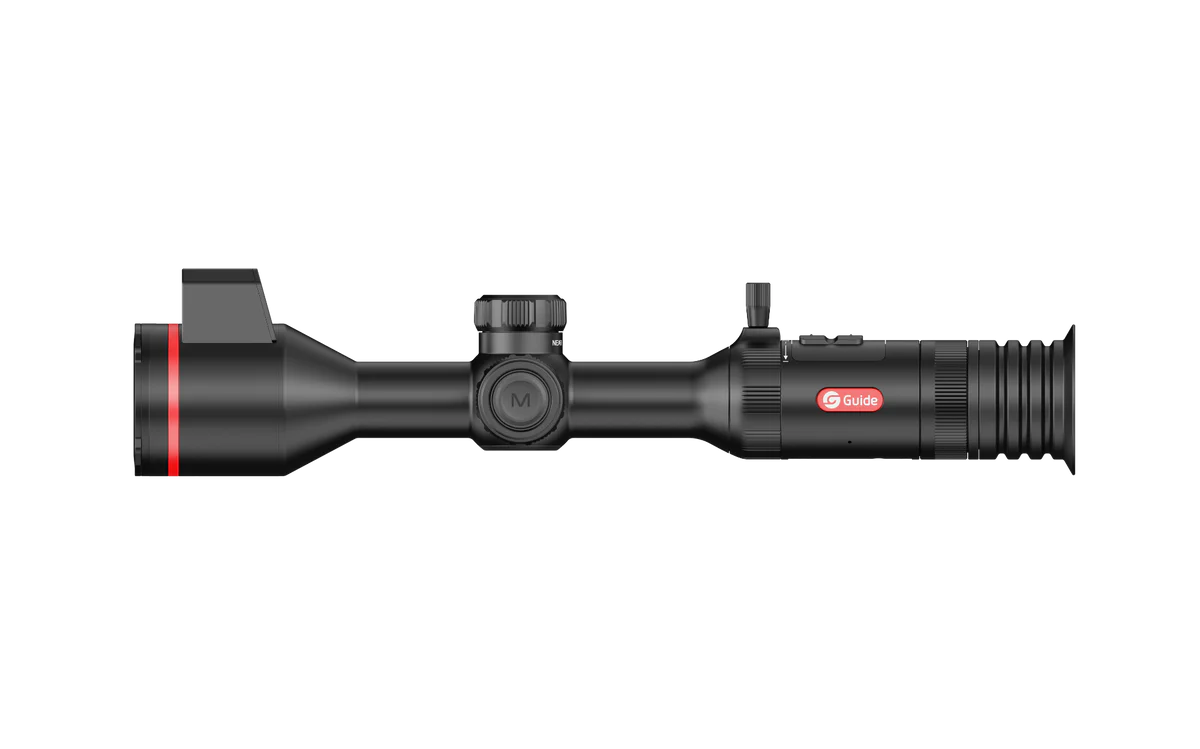

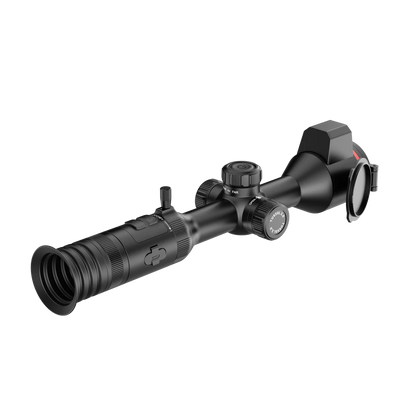

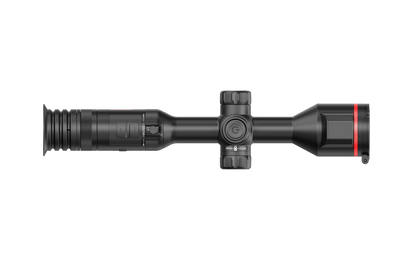

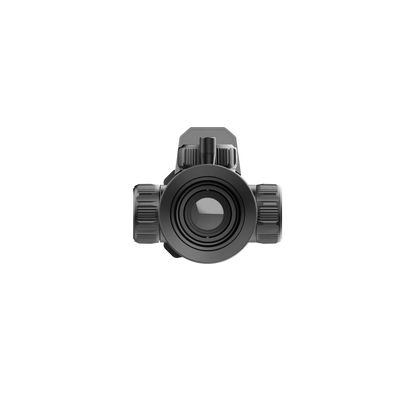

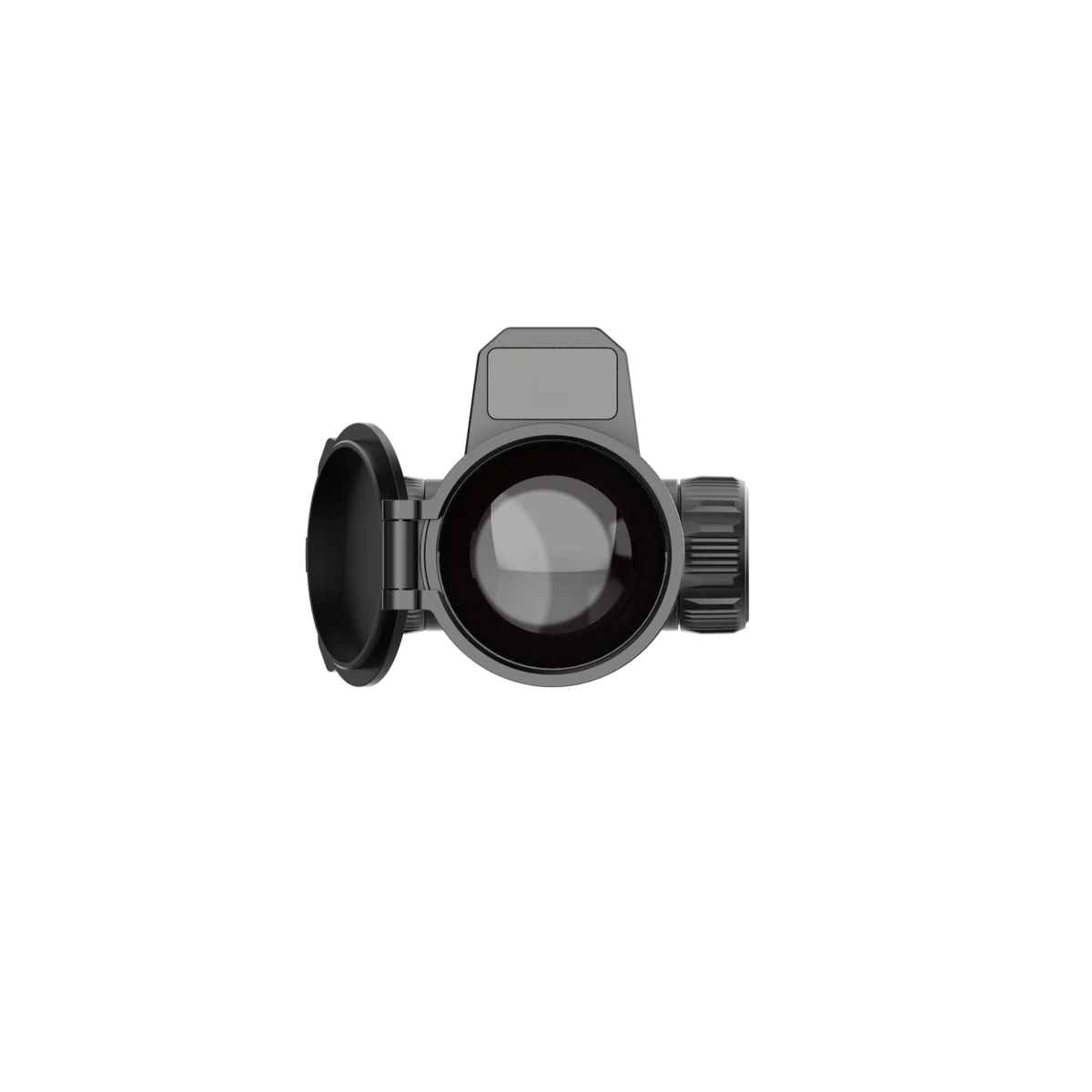

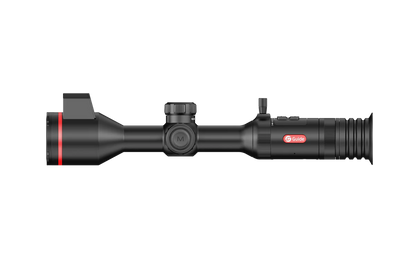

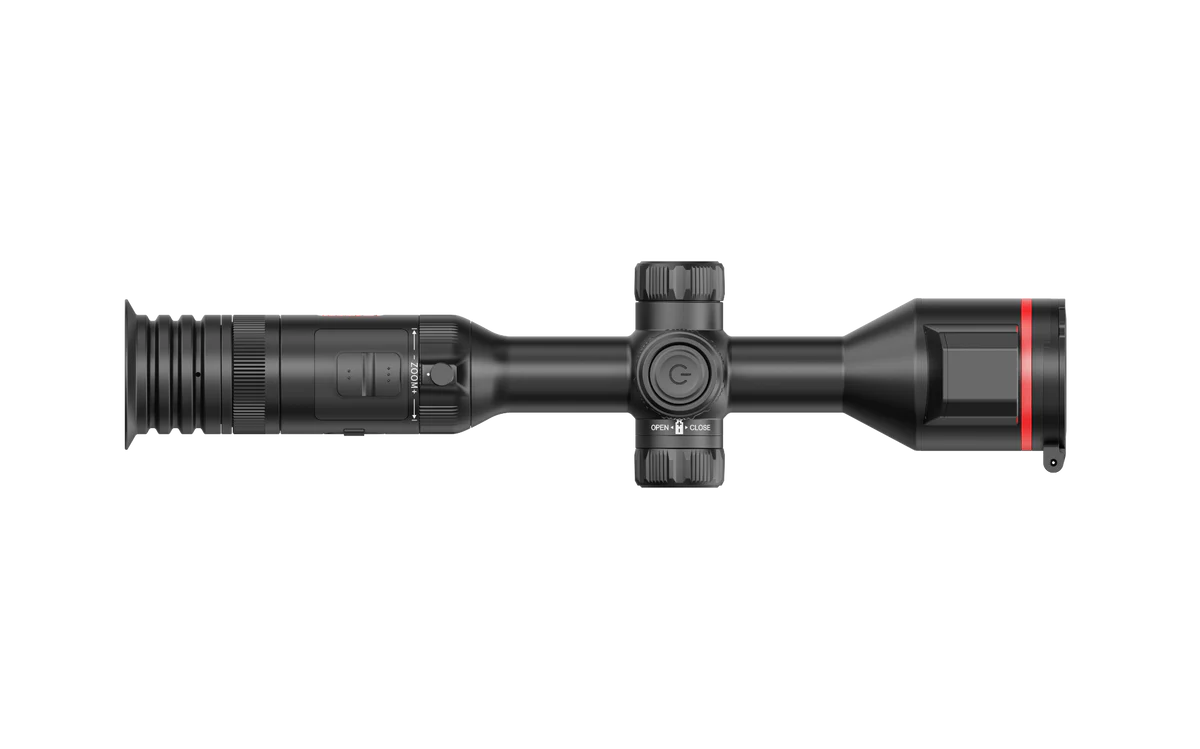

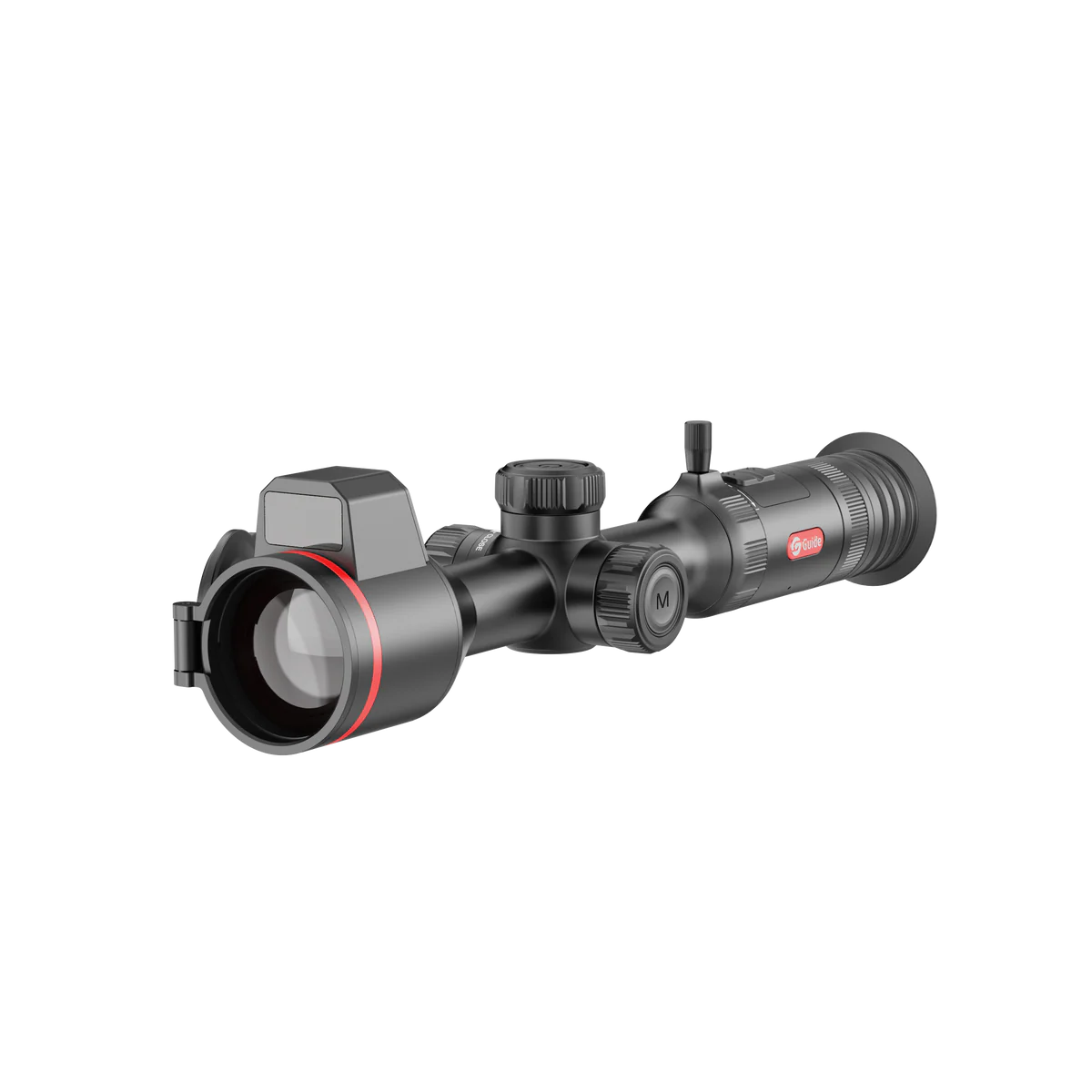

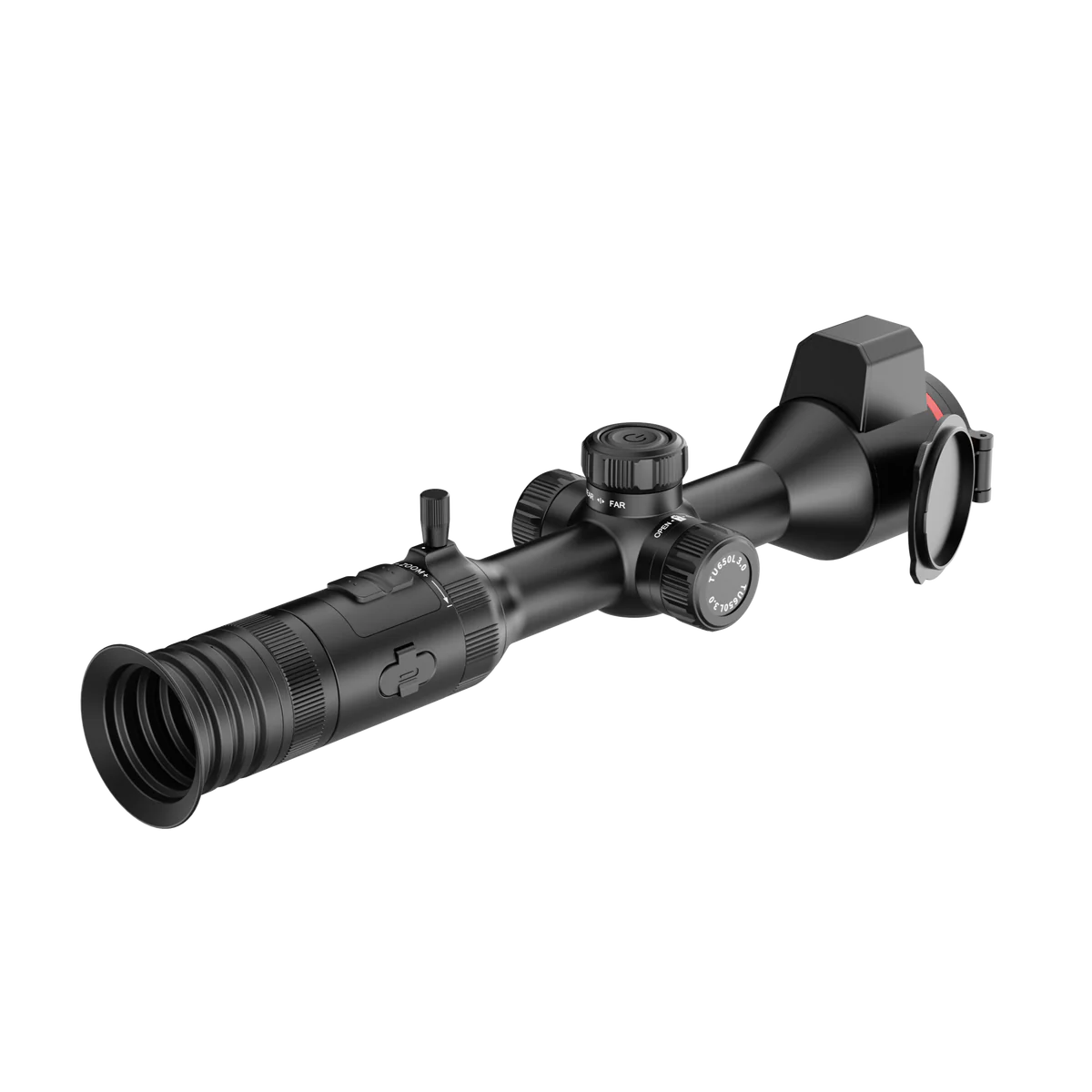

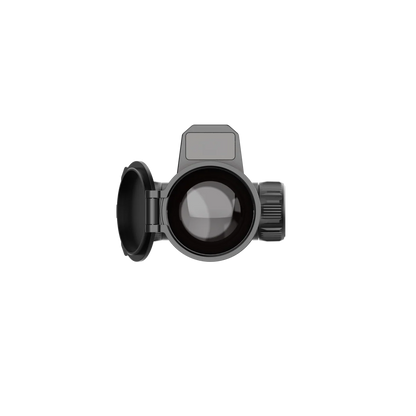

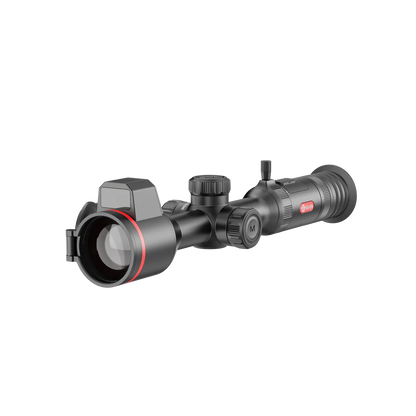

Guide TU 435 LRF 3.0

!! NEW 2025 !!

• 400x300Thermal High Quality Sensor
• Ultra-wide display: 0.49'' AMOLED 1920×1080
• 4.4X Base Magnification
• 1950yd Detection Range
• 1630yd Laser Rangefinder
• Dual battery system: 1x internal (USB-C rechargeable) and 1x external (18650)



• Type	Uncooled VOx Infrared Detector, 8 to 14μm
  Resolution	400×300@12μm
  NETD	20mK
  Frame rate	50 Hz

  Lens
  Objective lens	35mm, F1.0
  Field of view	7.4°×4.4°
  FOV m@100m	13×8
  Magnification	4.4x~17.6x
  Detection range	1950yd
  Focus	Manual

  Display
  Display type	0.49'' AMOLED 1920×1080
  Color palettes	White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
  Eyepiece	Eye relief: 48mm; Diopter -5 to +5; Zoom: 14x

  Hardware
  Laser rangefinder	1630yd
  WIFI	2.4G, 5G
  Interface	USB-C (Charge/USB2.0)
  Tube diameter	Standard 30 mm
  Others	Microphone, Bluetooth

  System
  Recording function	Photo/Video (Audio recording included)
  Memory capacity	128GB

  Power
  Battery type	18500 ×1 Battery (Built-in) and 18650 ×1 Battery (External)
  Operating time	12 hours

  Environmental
  Operating temp.	-20°C to 50°C / -4°F to +122°F
  Recoil Rating	.300 Win Mag
  Shock	6000J/1200G
  Encapsulation	IP68

  Physical
  Weight (g/oz)	780/27.51
  Size (mm/in)	374×89×82/14.72×3.50×3.23

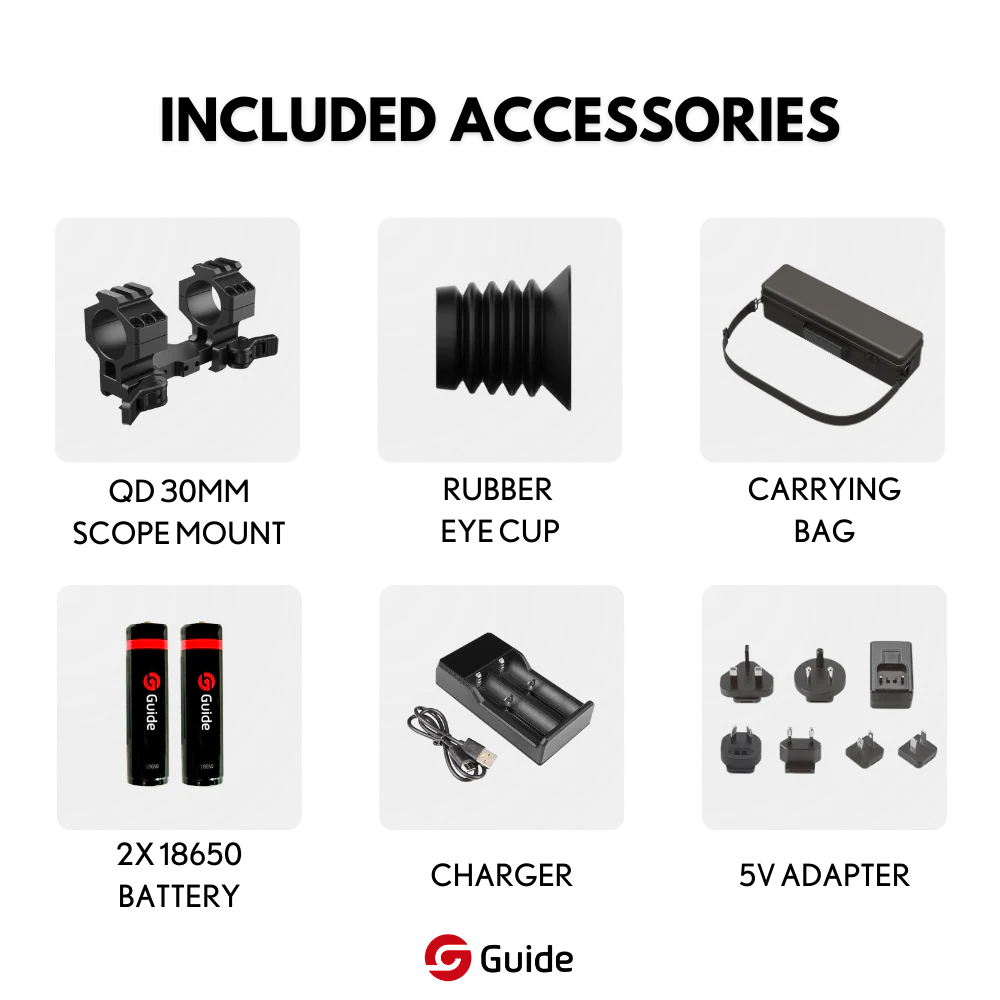

  Standard	Device, Lens Cover, Eye Mask, Quick-Release Scope Mount, Carry Bag, 18650 Battery ×2, Battery Charger,  5V 2A Adapter, USB-A to USB-C Cable, Quick Start Guide, Warranty Card
  Optional	Bluetooth Remote Control, 18650 Battery
