• 640×512 12 μm Sensor Resolution
  • 2800 yd Detection Range
  • 50mm; F1.0 Focal length
  • 1024x768 Display Resolution

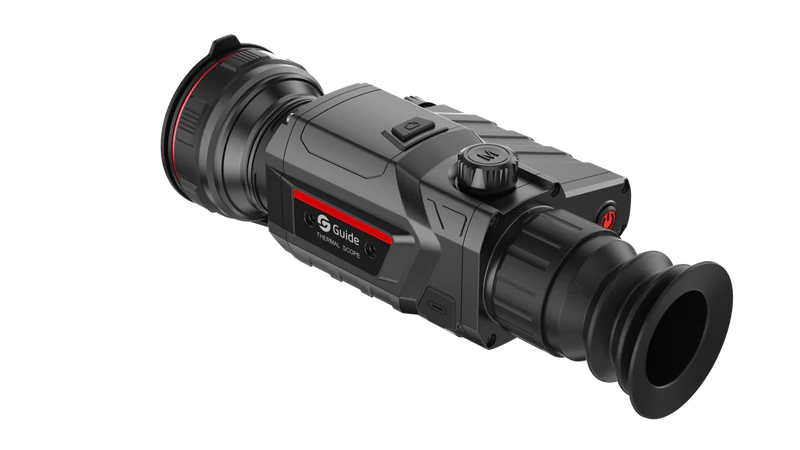

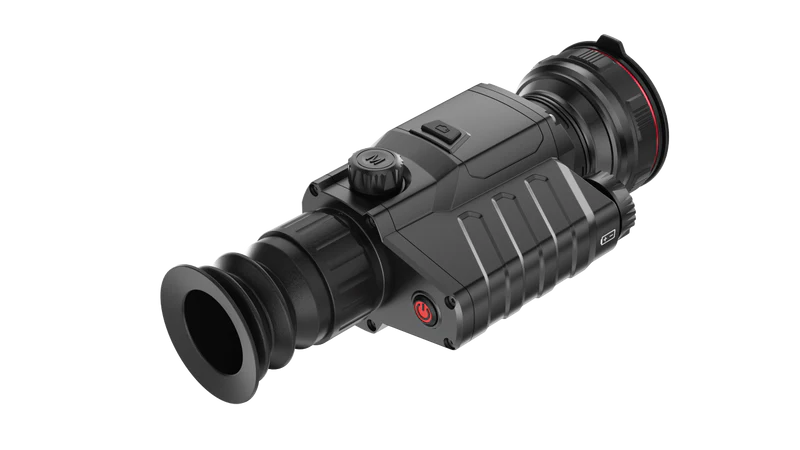

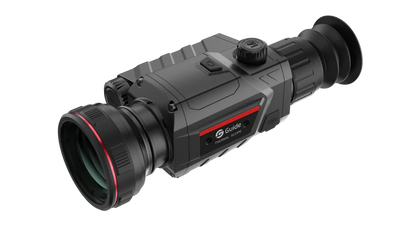

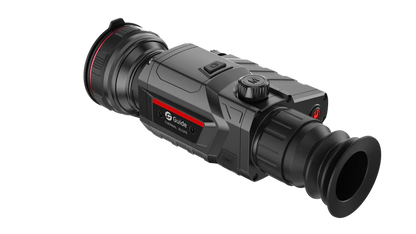

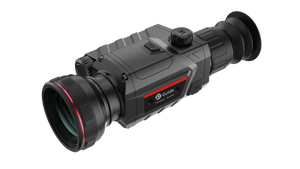

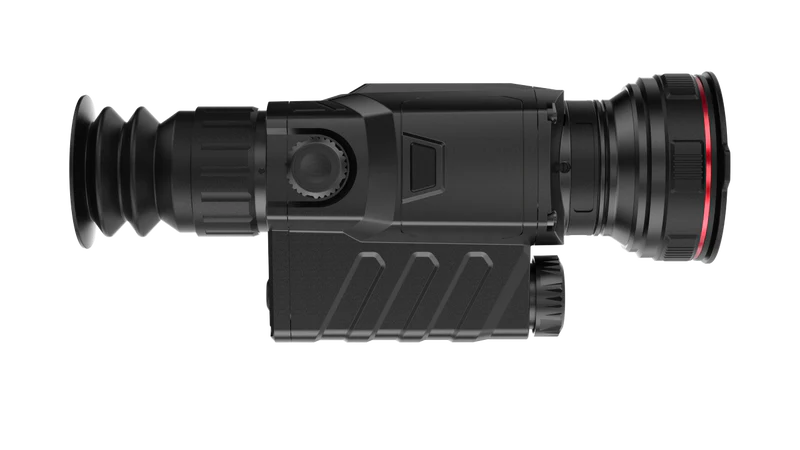

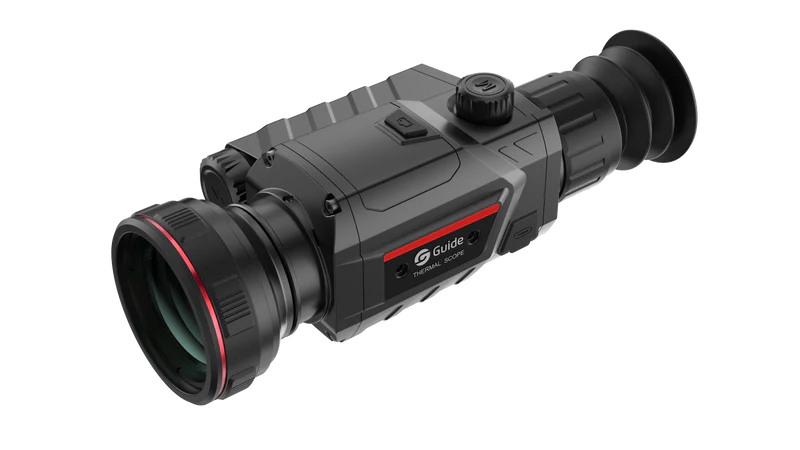

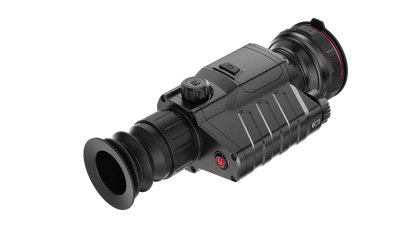

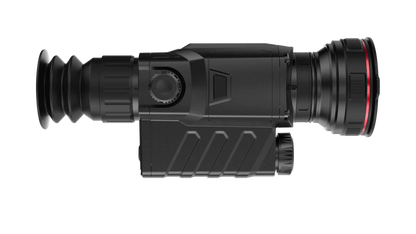

The TR Series is a compact thermal imaging riflescope imagined with intuitive ergonomics, high shock resistance and a rugged and durable body.

The TR 650 is equipped with a 50mm germanium lens and a 640x512 resolution thermal sensor with a 20mK NETD, it has a detection range of 2800 yards, and a base magnification of 2.4X.




Description
Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×512@12μm
NETD 20mK
Frame rate 50 Hz
Lens
Objective lens 50mm, F1.0
Field of view 8.8°×7.0°
FOV m@100m 15×12
Magnification 2.9x~23.2x
Detection range 2600m/2800yd
Display
Display type 0.39'' AMOLED 1024×768
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 48 mm; Diopter ± 4; Zoom: 14x
Hardware
WIFI 2.4G
Interface USB Type-C
Others Microphone, Bluetooth
System
Recording function Photo/Video (Audio recording included)
Memory capacity 32GB
Power
Battery type Single, replaceable 18650 battery
Operating time 8 hours
Environmental
Operating temp. -30°C to 50°C / -22°F to +122°F
Shock 800G at 1ms half sine pulse (as per IEC60068-2-27)
Encapsulation IP67
Physical
Weight (g/oz) 682/24.06
Size (mm/in) 219×92×70/8.62×3.62×2.76
Standard Device, Quick-release scope mount, Type-C cable, 5V2A adapter (US, Britain, Australia and Europe), 18650 battery, Battery charger, Lens cover, Eye mask, Quick start guide, Warranty card
Optional 18650 battery, Dovetail guide, Bluetooth remote control, Laser rangefinder


The TR Series of thermal scopes were specifically designed to be compact and lightweight, but they come with all the features that you can expect, which include: built-in recording and picture capture capabilities, Wi-Fi hotspot, 8X digital zoom, TargetIR app compatibility for storing and sharing images and videos, constant OTA upgrades, IP67 protection rating, 8 hours of battery life.

With a variety of models, whether you prioritize extreme thermal sensitivity, high base magnification, or a balanced combination of both, there’s a TR model tailored to meet your specific requirements.

As always with Guide Sensmart, we are prouf to offer a 10-year warranty on your optic and its thermal sensor. We trust our products more than anything else and are the only ones to offer this kind of warranty. With a Texas-based repair center, you can rest assured that you'll get your product back within a week.

Product Features

Sensor Resolution / Sensor Pixel Size

640x512 / 12μm

NETD Thermal Sensitivity

20mK

Sensor Frame rate

50 Hz

Objective Lens

50mm, F1.0

Field Of View

8.7°×6.6°

Magnification

2.9x~23.2x

Detection Range

2800yd

Battery Life

8 Hours (18650 Battery)
